T15 Spare xeem: Steering
Oct 28, 2025
Tso lus

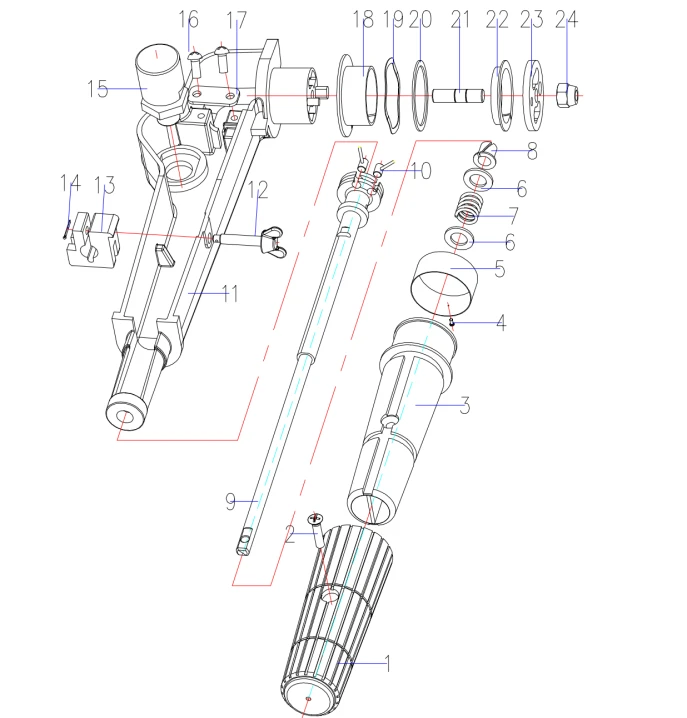

| CALON GLORIA T15 | ||||||
| REF NO | Khoom siv code | PART CODE | DESCRIPTION(EN) | UNIT | Ntim | YAMAHA |
| 1 | C3050503 | T20-04.00.01 | Roj Hmab Tsho, Kov | 1 | 6G1-42177-00 | |
| 2 | C4010357 | GB / T820 | Ntsia Hlau, Countersunk M5 × 25 | 1 | 90149-05M13 | |
| 3 | C3060509 | T20-04.00.02 | tuav | 1 | 664-42119-00 | |
| 4 | C4010344 | GB / T845 | Ntsia Hlau, Yias taub hau ST2.2 × 4.5 | 1 | ||
| 5 | C3090502 | T20-04.00.03 | Throttle Label | 1 | ||
| 6 | C4010514 | GB/T97 | Lub tshuab ntxhua khaub ncaws | 2 | 92903-10600 | |
| 7 | C3080504 | T20-04.00.04 | Compression Caij nplooj ntoos hlav | 1 | 90501-23215 | |
| 8 | C3060510 | T20-04.00.05 | Bushing | 1 | 90386-08032 | |
| 9 | C3060431 | T15-04.01.00 | Throttle Lever | 1 | 6G1-42138-01 | |
| 10 | C3090410 | T15-04.00.06 | Throttle Cable | 2 | 6L2-26301-01 | |
| 11 | C204C3010413 | T15-04.00.01 | Steering Handle | 1 | 63V-42111-01-4D | |
| 12 | C204C3090409 | T15-04.00.02 | Adjustor, Kev sib txhuam | 1 | 6G1-42125-01 | |
| 13 | C3060430 | T15-04.00.03 | Xauv Thaiv | 1 | 6G1-42126-00 | |
| 14 | C4010702 | GB/T91 | Cotter Pin φ1.2 × 12 | 1 | ||
| 15 | C3030410 | T15-04.00.05 | Emergency Stop Switch | 1 | 65W-82575-01 | |
| 16 | C4010314 | GB / T818 | Ntsia Hlau, Yias taub hau M5 × 10 | 2 | 97885-05012 | |
| 17 | C3070424 | T15-04.00.04 | Phaj, Throttle Level | 1 | 6E0-42159-02 | |
| 18 | C3060432 | T15-04.00.07 | Bushing (L) | 1 | 90386-34M97 | |
| 19 | C3070425 | T15-04.00.08 | Wave Washer | 1 | 90206-36M21 | |
| 20 | C3060433 | T15-04.00.09 | Lub tshuab ntxhua khaub ncaws | 1 | 90202-36M55 | |
| 21 | C3020419 | T15-04.00.12 | Stud, Ob npaug -Tau kawg | 1 | 90116-08016 | |
| 22 | C3060434 | T15-04.00.10 | Bushing (S) | 1 | 90386-33M96 | |
| 23 | C3070426 | T15-04.00.11 | Phaj, Steering Handle | 1 | 6G1-42131-02 | |
| 24 | C4010414 | GB / T889 | Txiv ntseej, Hexagon Xauv M8 | 1 | 90185-08057 | |
| C2040006 | T15-04.00.00.00 | Steering Handle Assy. | 1 | |||
