T3 Outboard Spare Parts: Pib
Sep 04, 2025
Tso lus

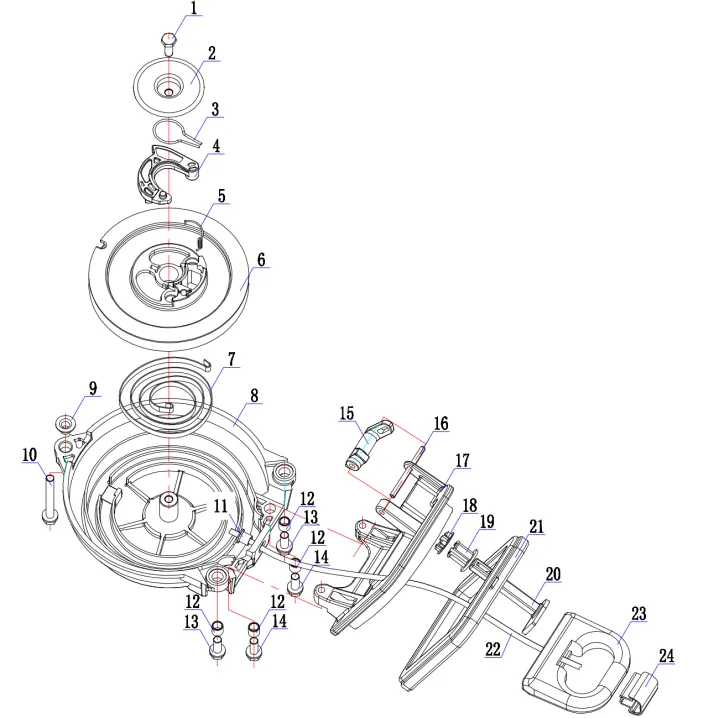

| CALON GLORIA T3 | ||||||
| REF NO | Khoom siv code | PART CODE | DESCRIPTION(EN) | UNIT | Ntim | YAMAHA |
| 1 | C4010112 | GB/T5783 | Bolt M6 × 12 | 1 | 97313-06012 | |
| 2 | C3070117 | T3-01.01.01 | Siab phaj | 1 | 6L5-15716-00 | |
| 3 | C3080113 | T3-01.01.02 | Clamp Caij nplooj ntoos hlav | 1 | 6A1-15705-00 | |
| 4 | C3060141 | T3-01.01.03 | Tsav Pawl | 1 | 6L5-15741-00 | |
| 5 | C3080114 | T3-01.01.04 | Caij nplooj ntoos hlav, Tsav Pawl | 1 | 6A1-15767-00 | |
| 6 | C3060142 | T3-01.01.05 | Pib Pulley | 1 | 6L5-15714-00 | |
| 7 | C3080115 | T3-01.01.10 | Kauv Caij nplooj ntoos hlav | 1 | 6L5-15713-00 | |
| 8 | C3060140 | T3-01.01.11.00 | Recoil Starter Cover | 1 | 6L5-15711-00 | |
| 9 | C3020111 | T3-01.01.12 | Spacer Tube | 1 | 90387-06M70 | |
| 10 | C4010284 | GB/T9074.14 (BXG) | Bolt Nrog Washer M6 × 35 | 1 | 95895-06035 | |
| 11 | C3070130 | T3-01.01.11.04 | Recoil Starter Ncej | 1 | 6L5-15789-00 | |
| 12 | C3070131 | T3-01.01.11.03 | Spacer Tube | 4 | ||
| 13 | C4010280 | GB/T9074.14 (BXG) | Bolt Nrog Washer M6 × 16 | 2 | 95895-06016 | |
| 14 | C4010281 | GB/T9074.14 (BXG) | Bolt Nrog Washer M6 × 20 | 2 | 95895-06020 | |
| 15 | C3060145 | T3-01.01.16.00 | Choj Rocker | 1 | 6L5-41252-00 | |
| 16 | C4010919 | GB/T879 | Pin φ4 × 50 | 1 | 91690-40048 | |
| 17 | C3010123 | T3-01.01.13 | Bracket | 1 | 6L5-15758-00-9 | |
| 18 | C3050415 | T15-02.00.05 | Roj Hmab Gasket | 1 | 6J8-41274-00 | |
| 19 | C3060419 | T15-02.00.06 | Bushing | 1 | 689-41273-00 | |
| 20 | C3060144 | T3-01.01.15 | Choke Lever | 1 | 6L5-41271-00 | |
| 21 | C3050123 | T3-01.01.17 | Roj Hmab Damper Ring | 1 | 6L5-15761-00 | |
| 22 | C3090122 | T3-01.01.06 | Pib hlua | 1 | ||
| 23 | C3060139 | T3-01.01.08.00 | Pib Handle Assembly | 1 | 6L5-15755-00 | |
| 24 | C3060143 | T3-01.01.09 | Handle Cover | 1 | 6L5-15799-00 | |
| C2010022 | T3BS | Starter Cover Assy.(Tsis suav No.10,No.13,No.21) | 1 | |||
